Category: 7 – Avionics & Wiring

Connected OAT sensor to GSU25. Fabricated and installed bracket for GMU 22.

Time: 4 hours.

Installed DSub 1 for GNX.

Time: 4 hours.

Installed DSub 2 for GNX.

Time: 4 hours.

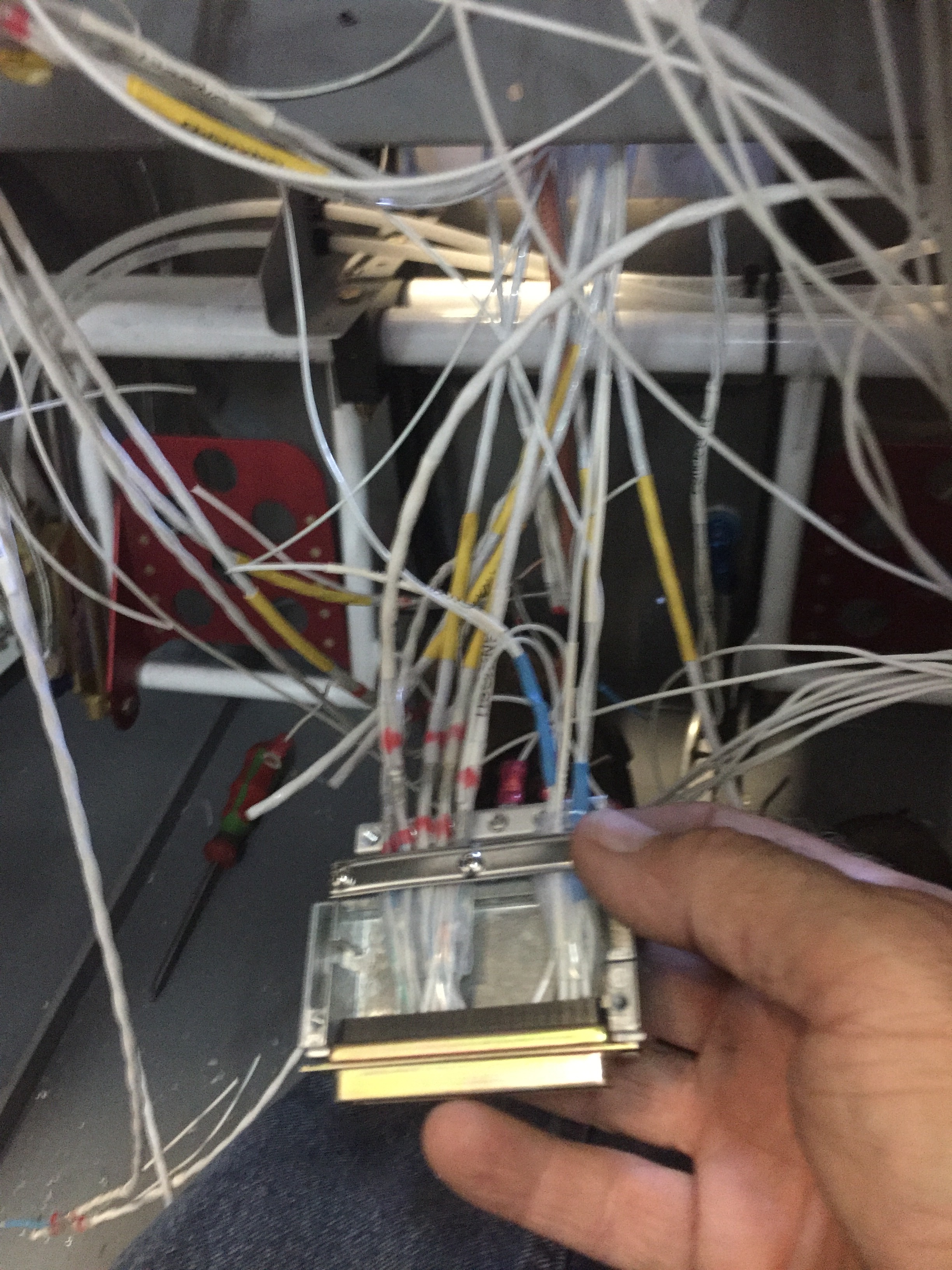

Installed 50 pin DSub for GEA.

Time: 4 hours.

Installed 9 pin DSub for GEA.

Time: 4 hours.

Installed 50-pin D-Sub for GAD27.

Time: 4 hours.

Installed small dsub for GAD29.

Time: 4 hours.

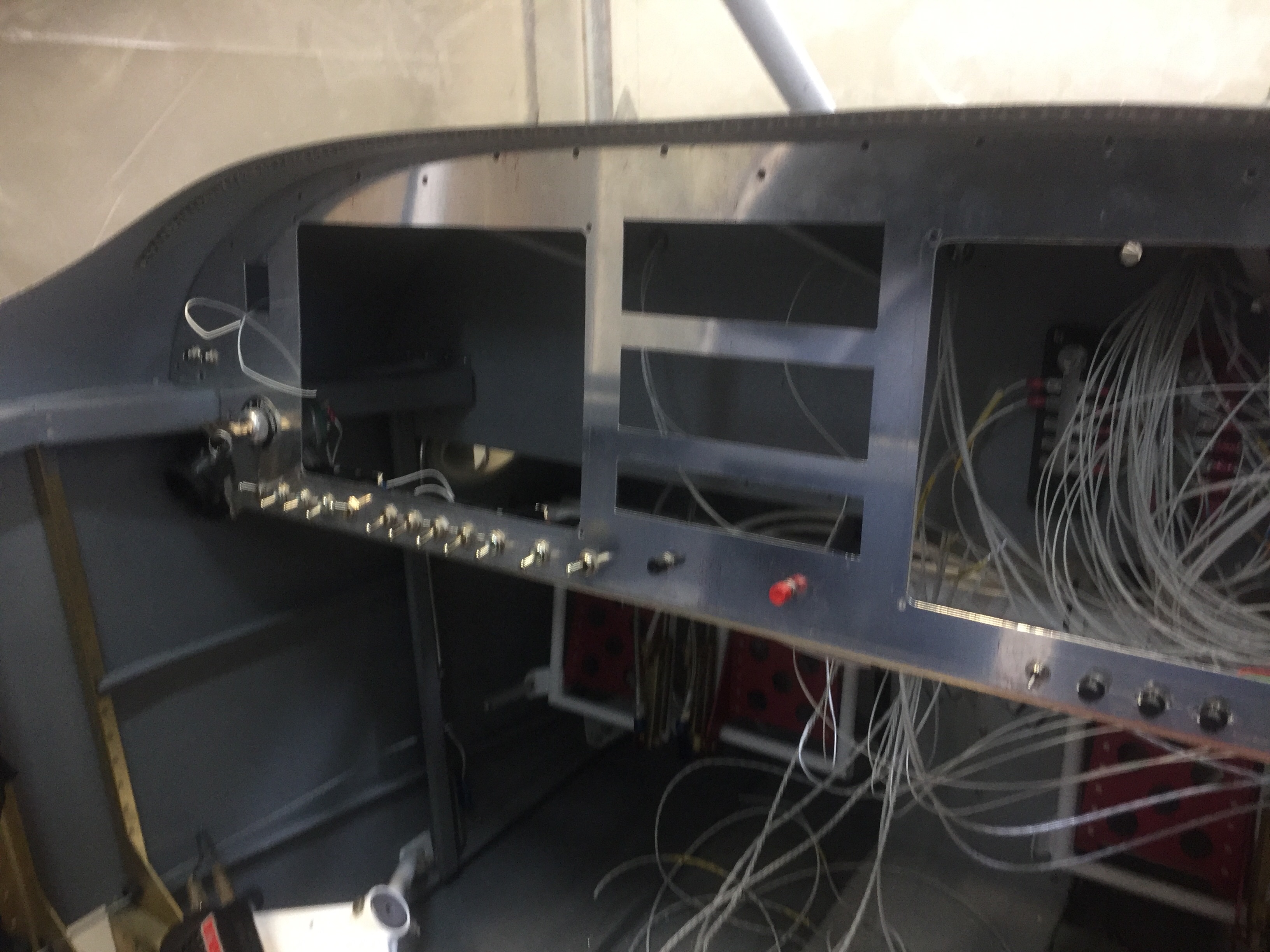

Installed switches and circuit breakers in the Instrument Panel. Mounted the IP to the cockpit framework.

Time: 4 hours.

Installed #6 wires to Main Bus and Ground Bus.

Time: 4 hours.

Designed the Instrument Panel and made the cutouts.

Time: 12 hours.
